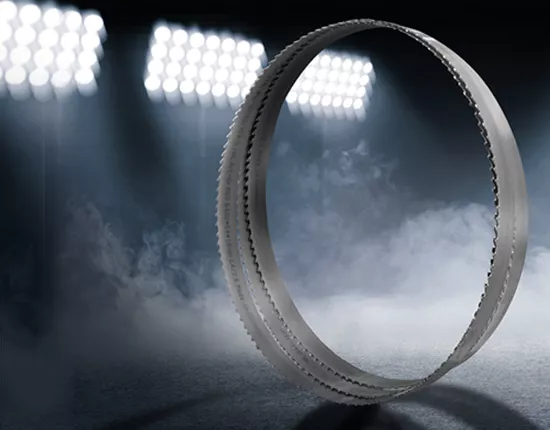

Band Saw Blades for high performance in the industry
ARNTZ offers customized solutions for cutting metals and all common construction and insulating materials. Discover the right Band Saw Blade for your needs from our selection of high-end Band Saw Blades.
Select sectors
The M42 Sprint-Plus is an excellent all-purpose Band Saw Blade, designed to deliver consistent high quality for a wide range of applications.
The high-performance Band Saw Blade for difficult materials made from M51 material.
The X-FIT Band Saw Blade, featuring a unique robust tooth design, is engineered to handle a wide range of applications effectively.
The all-rounder with extra wide set ensures a long service life thanks to its stable tooth shape, even in bundle cutting with increased chip volume
The M51 band saw blade with extra wide set for large profiles and beams.
The new Band Saw Blade for high-performance sawing processes where conventional M42 qualities cannot keep up.
High-end Band Saw Blade with tooth tips in M51 quality for increased strength.
The budget-friendly multitool with a robust tooth design for varying cutting tasks.
BI-METAL
SPRINT-PLUS
The M42 Sprint-Plus is an excellent all-purpose Band Saw Blade, designed to deliver consistent high quality for a wide range of applications.
BI-METAL
X-FIT
The X-FIT Band Saw Blade, featuring a unique robust tooth design, is engineered to handle a wide range of applications effectively.
BI-METAL
VL-GP
The budget-friendly multitool with a robust tooth design for varying cutting tasks.
BI-METAL
X-FIT
The X-FIT Band Saw Blade, featuring a unique robust tooth design, is engineered to handle a wide range of applications effectively.
BI-METAL
X-FIT MAX
The all-rounder with extra wide set ensures a long service life thanks to its stable tooth shape, even in bundle cutting with increased chip volume
BI-METAL
X-PRO MAX
The M51 band saw blade with extra wide set for large profiles and beams.
BI-METAL
VL-GP
The budget-friendly multitool with a robust tooth design for varying cutting tasks.
BI-METAL
SPRINT-PLUS
The M42 Sprint-Plus is an excellent all-purpose Band Saw Blade, designed to deliver consistent high quality for a wide range of applications.
BI-METAL
SPRINT-PRO
The high-performance Band Saw Blade for difficult materials made from M51 material.
BI-METAL
X-CELL
The new Band Saw Blade for high-performance sawing processes where conventional M42 qualities cannot keep up.
BI-METAL
X-CELL PRO
High-end Band Saw Blade with tooth tips in M51 quality for increased strength.
BI-METAL
SPRINT-PRO
The high-performance Band Saw Blade for difficult materials made from M51 material.
BI-METAL
X-CELL
The new Band Saw Blade for high-performance sawing processes where conventional M42 qualities cannot keep up.
BI-METAL
X-CELL PRO
High-end Band Saw Blade with tooth tips in M51 quality for increased strength.
BI-METAL
SPRINT-PLUS
The M42 Sprint-Plus is an excellent all-purpose Band Saw Blade, designed to deliver consistent high quality for a wide range of applications.
Choosing the optimal tooth pitch for your workpiece
This is how you select the right number of teeth per inch (tpi) for the Band Saw Blade
Choosing the right tooth pitch is crucial for precise and efficient cuts. The tooth pitch is determined and influenced by the number of teeth per inch (tpi). A higher number of teeth means a fine tooth pitch, while a lower number of teeth provides a coarser tooth pitch.
Ideal cutting speed and feed rate for your Band Saw Blades
The selection of the correct saw blade cutting speed and the saw blade feed rate depends largely on the material strength, the workpiece shape and the workpiece cross-section. Precise adjustment of these parameters ensures efficient processing and optimum cutting results.
How to ensure the correct break-in procedure
Correct break-in is important for a long service life and the reduction of tool and set-up costs. At the start of cutting, the particularly sharp tooth tips should not be fully loaded immediately, as overloading can lead to damage or chipping of the Band Saw Blade at an early stage. Correct break-in ensures that the cutting edges round off perfectly, which significantly improves the performance and durability of the tool.

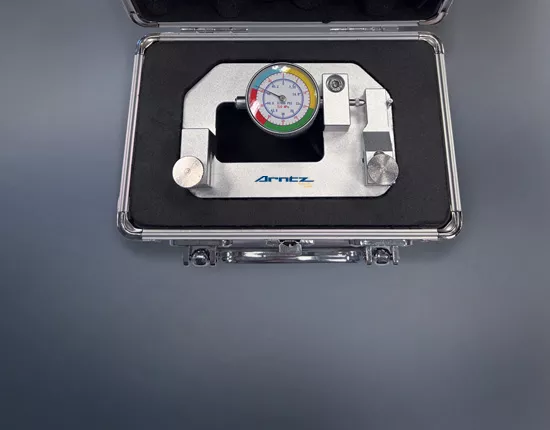

Tips for correct saw blade tension
The correct saw blade tension is an important factor for precise cuts. Tension that is too low can cause crooked or inaccurate results
For Band Saw Blades with a width of up to 27 mm, we recommend a tensile stress of at least 200 N/mm² (29.000 PSI).
For Band Saw Blade widths between 34 and 80 mm, the tensile stress should be at least 250 N/mm² (36.000 PSI).
Optimize your cutting results with the right saw blade tension.

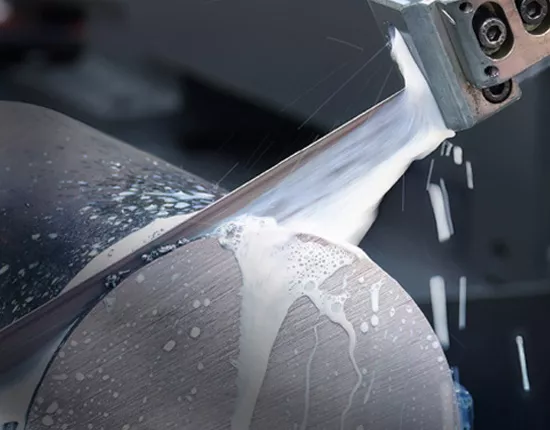

Cooling lubrication: Extends the service life of the Band Saw Blade
Cooling lubricants prevent overheating of the saw teeth and the workpiece. As a result, the service life of the band saw blade can be increased. It also helps to transport the chips from the cutting surface to the collection container.
It is customary on the market to saw with a cooling lubrication emulsion. Depending on the material to be sawn, the mixing ratio is from 1: 5, 1: 10 up to 1: 30.
How can you ensure the long performance of your sawing machine?
Regular maintenance and specific checks will keep your sawing machine in perfect condition. We recommend a periodical check of the sawing machine. For example, the chip clearing brushes, the saw blade guide and the cooling lubrication should be checked daily for proper function.
Regular review is also important for:
› the concentration of cooling lubrication
› the band saw blade tension
› the band saw machines wheels on play
› the hydraulic system (if available)
Frequently asked questions
What is a bi-metal Band Saw Blade?
Bi-metal Band Saw Blades combine the high flexibility of the base band, made of specially alloyed heat-treated steel with the enormous resistanceof the tooth tips made of hardened and tempered high-speed steel (HSS) in the qualities M42 and M51.
What is a carbide Band Saw Blade?
High-performance carbide tipped Band Saw Blades from ARNTZ have welded-on carbide balls that are processed into carbide teeth with different tooth geometries in the production process, resulting in low-vibration cuts and smooth material surfaces with high cutting performance.
Why are Band Saw Blades set?
The setting of the tooth ensures that the saw band is cut free, which prevents the band from becoming stuck in the cutting material.
What dimension of Band Saw Blade do I need?
The dimension of the Band Saw Blade is determined by the model of the band saw and is given in millimeters (or inches). Please take this information from the machine manufacturer’s specifications. ARNTZ Band Saw Blades can be individually made to measure for you or supplied as coils.
Why do Band Saw Blades need to be retracted?
It is always recommended to run in the Band Saw Blades when using them for the first time to prevent premature tooth edge breakage. This significantly changes the service life and cutting quality of the Band Saw Blade.
